PWM Generator with Display

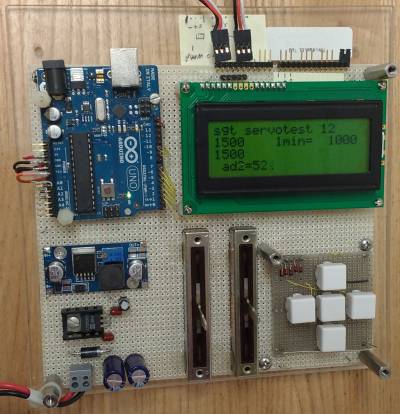

This project generates “servo PWM” signals for testing servos and FRC Motor Controllers.
Some of its features:
- two PWM outputs
- slide potentiometers for controlling servo position or motor speed and direction
- display of PWM pulse width in microseconds on an LCD display
- keypad for fine-tuning the PWM range
- Arduino processor and open-source code
