LED's

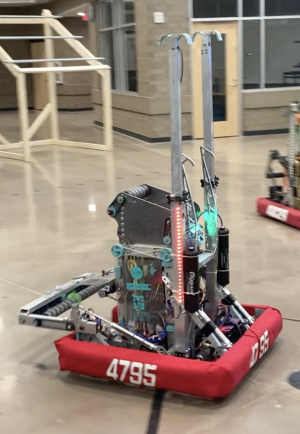

2x Strips of RGB Addressable LED's
The silicone protective layer started to flake off, didn't affect the performance of the LED's
Github
LED.java
LED States
Solid Alliance Color: The default state of the LED's, no balls detected and no climbing Half Green: Indicates that a ball is in the top position of the tower Full Green: Indicates that two balls are in their positions in the tower Purple Top-Bottom Animation: Indicates the shooter RPM's, solid purple when up to speed
